Week 6: Spatiotemporal Modeling & Projects

Advanced temporal analysis and independent project implementation

Learning Objectives

By the end of this session, you will be able to:

  • Implement spatiotemporal analysis techniques for multi-temporal satellite imagery
  • Build time series models for change detection and trend analysis
  • Apply foundation models to temporal sequences of geospatial data
  • Design and begin executing your independent project
  • Evaluate model performance using appropriate spatiotemporal metrics
Prerequisites

This session builds on all previous weeks, particularly Week 5’s fine-tuning techniques. You should have defined your project proposal and be ready to begin implementation.

Spatiotemporal Data Fundamentals

Spatiotemporal analysis combines spatial patterns with temporal dynamics to understand how geographic phenomena change over time. This is crucial for applications like:

  • Land cover change detection: Deforestation, urban expansion
  • Crop monitoring: Growth stages, yield prediction
  • Climate impact assessment: Drought progression, flood mapping
  • Environmental monitoring: Water quality changes, vegetation health

Understanding Temporal Patterns

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
from torch.utils.data import Dataset, DataLoader
import rasterio
import xarray as xr
from datetime import datetime, timedelta
import warnings
warnings.filterwarnings('ignore')

# Set up reproducible results
torch.manual_seed(42)
np.random.seed(42)

class TemporalDataset(Dataset):
    """Dataset for multi-temporal satellite imagery"""

    def __init__(self, n_samples=500, sequence_length=12, image_size=64):
        self.n_samples = n_samples
        self.sequence_length = sequence_length
        self.image_size = image_size

        # Simulate monthly time series data
        self.data = self._generate_synthetic_timeseries()

    def _generate_synthetic_timeseries(self):
        """Generate synthetic time series with seasonal patterns"""
        data = []

        for i in range(self.n_samples):
            # Create base landscape with some spatial structure
            base_landscape = self._create_landscape()

            # Generate temporal sequence with seasonal variation
            sequence = []
            for t in range(self.sequence_length):
                # Seasonal factor (NDVI-like pattern)
                seasonal_factor = 0.3 + 0.4 * np.sin(2 * np.pi * t / 12)

                # Add some random change events
                change_factor = 1.0
                if np.random.random() < 0.1:  # 10% chance of change
                    change_factor = np.random.uniform(0.5, 1.5)

                # Combine factors
                image = base_landscape * seasonal_factor * change_factor

                # Add noise
                noise = np.random.normal(0, 0.05, image.shape)
                image = np.clip(image + noise, 0, 1)

                sequence.append(torch.FloatTensor(image))

            data.append(torch.stack(sequence))  # Shape: (T, C, H, W)

        return data

    def _create_landscape(self):
        """Create a realistic base landscape"""
        # Start with random field
        landscape = np.random.random((3, self.image_size, self.image_size))

        # Add some spatial structure (vegetation patches)
        x, y = np.meshgrid(np.linspace(0, 1, self.image_size),
                          np.linspace(0, 1, self.image_size))

        # Create vegetation patches
        vegetation = 0.5 + 0.3 * np.sin(4 * np.pi * x) * np.cos(4 * np.pi * y)
        vegetation = np.clip(vegetation, 0, 1)

        # Apply to NDVI-like band
        landscape[1] = vegetation

        return landscape

    def __len__(self):
        return self.n_samples

    def __getitem__(self, idx):
        return self.data[idx]

# Create temporal dataset
temporal_dataset = TemporalDataset(n_samples=200, sequence_length=12)
temporal_loader = DataLoader(temporal_dataset, batch_size=8, shuffle=True)

print(f"Dataset size: {len(temporal_dataset)}")
print(f"Data shape: {temporal_dataset[0].shape}")  # (T, C, H, W)

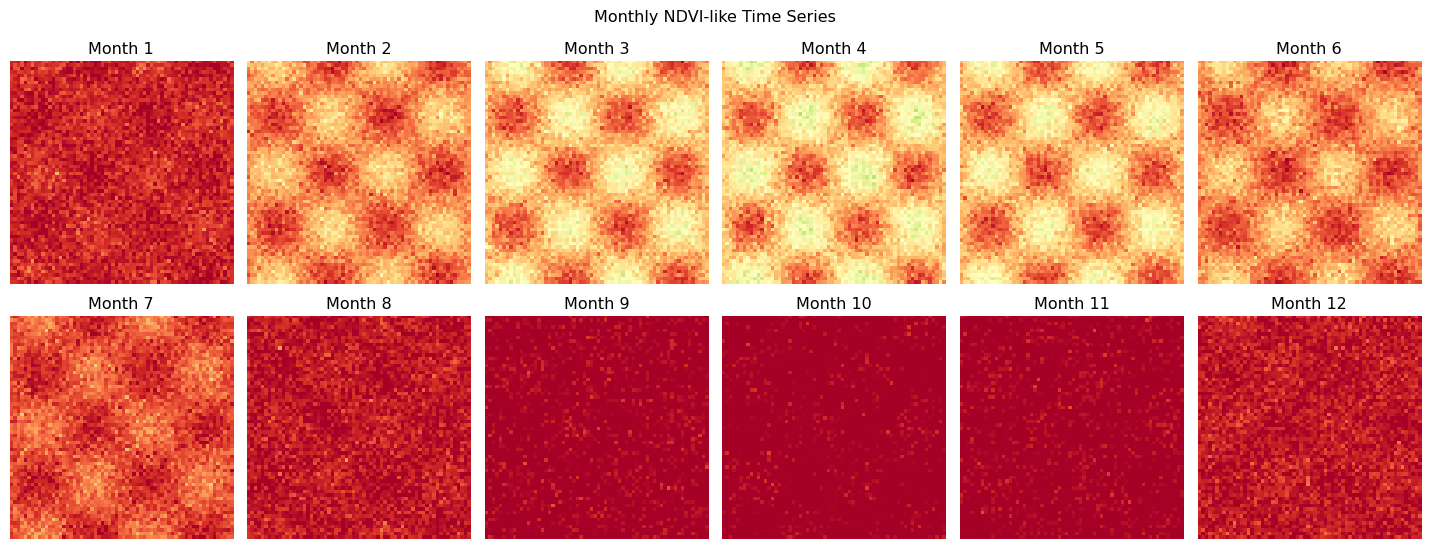

# Visualize a sample time series
sample_ts = temporal_dataset[0]
fig, axes = plt.subplots(2, 6, figsize=(15, 6))
for i in range(12):
    row = i // 6
    col = i % 6
    axes[row, col].imshow(sample_ts[i, 1], cmap='RdYlGn', vmin=0, vmax=1)
    axes[row, col].set_title(f'Month {i+1}')
    axes[row, col].axis('off')
plt.suptitle('Monthly NDVI-like Time Series')
plt.tight_layout()
plt.show()
Dataset size: 200
Data shape: torch.Size([12, 3, 64, 64])

Temporal Foundation Models

LSTM-based Temporal Processing

class TemporalLSTM(nn.Module):
    """LSTM-based model for temporal sequence processing"""

    def __init__(self, input_dim, hidden_dim=128, num_layers=2, output_dim=None):
        super().__init__()
        self.input_dim = input_dim
        self.hidden_dim = hidden_dim
        self.num_layers = num_layers
        self.output_dim = output_dim or input_dim

        # Spatial feature extractor
        self.spatial_encoder = nn.Sequential(
            nn.Conv2d(3, 32, 3, padding=1),
            nn.ReLU(),
            nn.MaxPool2d(2),
            nn.Conv2d(32, 64, 3, padding=1),
            nn.ReLU(),
            nn.AdaptiveAvgPool2d(8),
            nn.Flatten(),
            nn.Linear(64 * 8 * 8, input_dim)
        )

        # Temporal LSTM
        self.lstm = nn.LSTM(input_dim, hidden_dim, num_layers,
                           batch_first=True, dropout=0.1)

        # Output projection
        self.output_head = nn.Sequential(
            nn.Linear(hidden_dim, hidden_dim),
            nn.ReLU(),
            nn.Dropout(0.1),
            nn.Linear(hidden_dim, self.output_dim)
        )

    def forward(self, x):
        # x: (B, T, C, H, W)
        batch_size, seq_len, c, h, w = x.shape

        # Process each timestep through spatial encoder
        x_flat = x.view(batch_size * seq_len, c, h, w)
        spatial_features = self.spatial_encoder(x_flat)  # (B*T, input_dim)
        spatial_features = spatial_features.view(batch_size, seq_len, -1)  # (B, T, input_dim)

        # Process temporal sequence
        lstm_out, (hidden, cell) = self.lstm(spatial_features)

        # Use final hidden state for prediction
        output = self.output_head(lstm_out[:, -1])  # (B, output_dim)

        return {
            'prediction': output,
            'temporal_features': lstm_out,
            'spatial_features': spatial_features
        }

# Initialize model
model = TemporalLSTM(input_dim=256, hidden_dim=128)
print(f"Model parameters: {sum(p.numel() for p in model.parameters()):,}")

# Test forward pass
sample_batch = next(iter(temporal_loader))
print(f"Input shape: {sample_batch.shape}")

with torch.no_grad():
    output = model(sample_batch)
    print(f"Prediction shape: {output['prediction'].shape}")
    print(f"Temporal features shape: {output['temporal_features'].shape}")
Model parameters: 1,447,488
Input shape: torch.Size([8, 12, 3, 64, 64])
Prediction shape: torch.Size([8, 256])
Temporal features shape: torch.Size([8, 12, 128])

Transformer-based Temporal Processing

class TemporalTransformer(nn.Module):
    """Transformer-based model for temporal sequence processing"""

    def __init__(self, input_dim=256, d_model=256, nhead=8, num_layers=4, output_dim=None):
        super().__init__()
        self.input_dim = input_dim
        self.d_model = d_model
        self.output_dim = output_dim or input_dim

        # Spatial feature extractor (same as LSTM version)
        self.spatial_encoder = nn.Sequential(
            nn.Conv2d(3, 32, 3, padding=1),
            nn.ReLU(),
            nn.MaxPool2d(2),
            nn.Conv2d(32, 64, 3, padding=1),
            nn.ReLU(),
            nn.AdaptiveAvgPool2d(8),
            nn.Flatten(),
            nn.Linear(64 * 8 * 8, input_dim)
        )

        # Project to model dimension
        self.input_projection = nn.Linear(input_dim, d_model)

        # Positional encoding for temporal positions
        self.pos_encoding = nn.Parameter(torch.randn(100, d_model))  # Max 100 timesteps

        # Transformer encoder
        encoder_layer = nn.TransformerEncoderLayer(
            d_model=d_model,
            nhead=nhead,
            dim_feedforward=d_model * 4,
            dropout=0.1,
            batch_first=True
        )
        self.transformer = nn.TransformerEncoder(encoder_layer, num_layers)

        # Output head
        self.output_head = nn.Sequential(
            nn.LayerNorm(d_model),
            nn.Linear(d_model, d_model),
            nn.ReLU(),
            nn.Dropout(0.1),
            nn.Linear(d_model, self.output_dim)
        )

    def forward(self, x):
        # x: (B, T, C, H, W)
        batch_size, seq_len, c, h, w = x.shape

        # Process spatial features
        x_flat = x.view(batch_size * seq_len, c, h, w)
        spatial_features = self.spatial_encoder(x_flat)
        spatial_features = spatial_features.view(batch_size, seq_len, -1)

        # Project to model dimension
        features = self.input_projection(spatial_features)  # (B, T, d_model)

        # Add positional encoding
        features = features + self.pos_encoding[:seq_len].unsqueeze(0)

        # Apply transformer
        transformer_out = self.transformer(features)  # (B, T, d_model)

        # Global average pooling across time
        pooled = transformer_out.mean(dim=1)  # (B, d_model)

        # Output prediction
        output = self.output_head(pooled)

        return {
            'prediction': output,
            'temporal_features': transformer_out,
            'spatial_features': spatial_features
        }

# Initialize transformer model
transformer_model = TemporalTransformer(input_dim=256, d_model=256)
print(f"Transformer parameters: {sum(p.numel() for p in transformer_model.parameters()):,}")

# Test forward pass
with torch.no_grad():
    transformer_output = transformer_model(sample_batch)
    print(f"Transformer prediction shape: {transformer_output['prediction'].shape}")
Transformer parameters: 4,450,752
Transformer prediction shape: torch.Size([8, 256])

Change Detection Applications

Temporal Change Detection

class ChangeDetector(nn.Module):
    """Model for detecting changes in temporal sequences"""

    def __init__(self, backbone_model, num_classes=3):
        super().__init__()
        self.backbone = backbone_model
        self.num_classes = num_classes  # No change, Gradual change, Abrupt change

        # Get the output dimension from backbone
        output_dim = backbone_model.output_dim

        # Change classification head
        self.change_classifier = nn.Sequential(
            nn.Linear(output_dim, 128),
            nn.ReLU(),
            nn.Dropout(0.2),
            nn.Linear(128, num_classes)
        )

        # Change magnitude regression
        self.magnitude_regressor = nn.Sequential(
            nn.Linear(output_dim, 64),
            nn.ReLU(),
            nn.Linear(64, 1),
            nn.Sigmoid()  # Output between 0 and 1
        )

    def forward(self, x):
        # Get features from backbone
        backbone_out = self.backbone(x)
        features = backbone_out['prediction']

        # Classify change type
        change_type = self.change_classifier(features)

        # Predict change magnitude
        change_magnitude = self.magnitude_regressor(features)

        return {
            'change_type': change_type,
            'change_magnitude': change_magnitude,
            'features': features,
            'backbone_output': backbone_out
        }

# Create change detection model
change_detector = ChangeDetector(transformer_model, num_classes=3)

# Create training data with change labels
def create_change_labels(temporal_data):
    """Create synthetic change labels for training"""
    batch_size, seq_len, c, h, w = temporal_data.shape

    change_types = []
    change_magnitudes = []

    for i in range(batch_size):
        # Analyze temporal progression
        sequence = temporal_data[i, :, 1]  # Use vegetation band

        # Calculate temporal variance as proxy for change
        temporal_var = torch.var(sequence.flatten(1), dim=1).mean()

        # Classify change type based on variance
        if temporal_var < 0.01:
            change_type = 0  # No change
            magnitude = 0.0
        elif temporal_var < 0.05:
            change_type = 1  # Gradual change
            magnitude = float(temporal_var / 0.05)
        else:
            change_type = 2  # Abrupt change
            magnitude = min(1.0, float(temporal_var / 0.1))

        change_types.append(change_type)
        change_magnitudes.append(magnitude)

    return torch.LongTensor(change_types), torch.FloatTensor(change_magnitudes).unsqueeze(1)

# Test change detection
with torch.no_grad():
    change_output = change_detector(sample_batch)
    change_types, change_mags = create_change_labels(sample_batch)

    print(f"Change type predictions: {change_output['change_type'].shape}")
    print(f"Change magnitude predictions: {change_output['change_magnitude'].shape}")
    print(f"Sample change types: {change_types[:5]}")
    print(f"Sample change magnitudes: {change_mags[:5, 0]}")
Change type predictions: torch.Size([8, 3])
Change magnitude predictions: torch.Size([8, 1])
Sample change types: tensor([0, 0, 0, 0, 0])
Sample change magnitudes: tensor([0., 0., 0., 0., 0.])

Training Change Detection Model

import torch.optim as optim
from torch.nn import CrossEntropyLoss, MSELoss

class ChangeDetectionTrainer:
    """Trainer for change detection models"""

    def __init__(self, model, device='cpu'):
        self.model = model.to(device)
        self.device = device

        # Loss functions
        self.classification_loss = CrossEntropyLoss()
        self.regression_loss = MSELoss()

        # Optimizer
        self.optimizer = optim.AdamW(model.parameters(), lr=1e-4, weight_decay=0.01)

        # Training history
        self.history = {
            'train_loss': [],
            'val_loss': [],
            'classification_acc': [],
            'regression_mae': []
        }

    def train_epoch(self, dataloader):
        """Train for one epoch"""
        self.model.train()
        total_loss = 0
        correct_classifications = 0
        total_samples = 0
        total_mae = 0

        for batch_idx, data in enumerate(dataloader):
            data = data.to(self.device)

            # Generate labels
            change_types, change_mags = create_change_labels(data)
            change_types = change_types.to(self.device)
            change_mags = change_mags.to(self.device)

            # Forward pass
            output = self.model(data)

            # Calculate losses
            class_loss = self.classification_loss(output['change_type'], change_types)
            reg_loss = self.regression_loss(output['change_magnitude'], change_mags)

            # Combined loss
            total_batch_loss = class_loss + reg_loss

            # Backward pass
            self.optimizer.zero_grad()
            total_batch_loss.backward()
            self.optimizer.step()

            # Statistics
            total_loss += total_batch_loss.item()
            pred_classes = output['change_type'].argmax(dim=1)
            correct_classifications += (pred_classes == change_types).sum().item()
            total_samples += change_types.size(0)

            # MAE for regression
            mae = torch.abs(output['change_magnitude'] - change_mags).mean().item()
            total_mae += mae

        avg_loss = total_loss / len(dataloader)
        classification_acc = correct_classifications / total_samples
        avg_mae = total_mae / len(dataloader)

        return avg_loss, classification_acc, avg_mae

    def fit(self, train_loader, val_loader=None, epochs=10):
        """Complete training procedure"""
        print("Training change detection model...")

        for epoch in range(epochs):
            # Train
            train_loss, train_acc, train_mae = self.train_epoch(train_loader)

            # Validate (using training data for demo)
            val_loss, val_acc, val_mae = train_loss, train_acc, train_mae

            # Store history
            self.history['train_loss'].append(train_loss)
            self.history['val_loss'].append(val_loss)
            self.history['classification_acc'].append(train_acc)
            self.history['regression_mae'].append(train_mae)

            print(f"Epoch {epoch+1:2d}/{epochs} | "
                  f"Loss: {train_loss:.4f} | "
                  f"Acc: {train_acc:.3f} | "
                  f"MAE: {train_mae:.4f}")

        return self.history

# Train the model
trainer = ChangeDetectionTrainer(change_detector)
history = trainer.fit(temporal_loader, epochs=5)

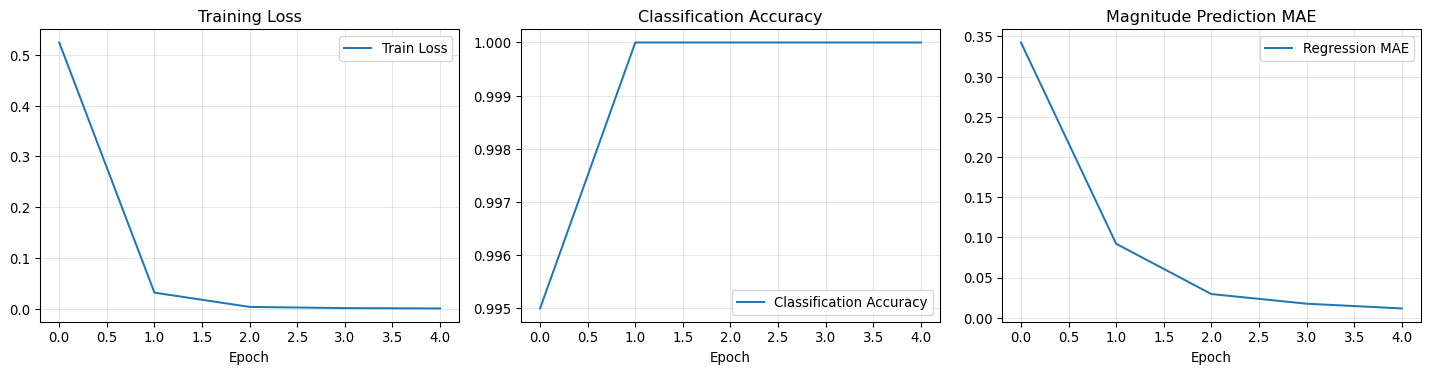

# Plot training curves
fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(15, 4))

ax1.plot(history['train_loss'], label='Train Loss')
ax1.set_title('Training Loss')
ax1.set_xlabel('Epoch')
ax1.legend()
ax1.grid(True, alpha=0.3)

ax2.plot(history['classification_acc'], label='Classification Accuracy')
ax2.set_title('Classification Accuracy')
ax2.set_xlabel('Epoch')
ax2.legend()
ax2.grid(True, alpha=0.3)

ax3.plot(history['regression_mae'], label='Regression MAE')
ax3.set_title('Magnitude Prediction MAE')
ax3.set_xlabel('Epoch')
ax3.legend()
ax3.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()
Training change detection model...
Epoch  1/5 | Loss: 0.5245 | Acc: 0.995 | MAE: 0.3425
Epoch  2/5 | Loss: 0.0317 | Acc: 1.000 | MAE: 0.0920
Epoch  3/5 | Loss: 0.0036 | Acc: 1.000 | MAE: 0.0294
Epoch  4/5 | Loss: 0.0012 | Acc: 1.000 | MAE: 0.0174
Epoch  5/5 | Loss: 0.0006 | Acc: 1.000 | MAE: 0.0115

Foundation Model Integration

Adapting Pretrained Models for Temporal Analysis

class FoundationModelTemporal(nn.Module):
    """Adapter for using foundation models with temporal data"""

    def __init__(self, foundation_model, temporal_fusion='attention'):
        super().__init__()
        self.foundation_model = foundation_model
        self.temporal_fusion = temporal_fusion

        # Assume foundation model outputs 768-dim features
        self.feature_dim = 768

        if temporal_fusion == 'attention':
            self.temporal_attention = nn.MultiheadAttention(
                embed_dim=self.feature_dim,
                num_heads=8,
                batch_first=True
            )
        elif temporal_fusion == 'lstm':
            self.temporal_lstm = nn.LSTM(
                input_size=self.feature_dim,
                hidden_size=self.feature_dim,
                num_layers=2,
                batch_first=True
            )
        elif temporal_fusion == 'transformer':
            encoder_layer = nn.TransformerEncoderLayer(
                d_model=self.feature_dim,
                nhead=8,
                batch_first=True
            )
            self.temporal_transformer = nn.TransformerEncoder(encoder_layer, num_layers=3)

        # Final classification/regression heads
        self.classifier = nn.Linear(self.feature_dim, 10)  # 10 land cover classes

    def forward(self, x):
        # x: (B, T, C, H, W)
        batch_size, seq_len, c, h, w = x.shape

        # Process each timestep through foundation model
        temporal_features = []
        for t in range(seq_len):
            # Extract features for timestep t
            with torch.no_grad():  # Foundation model frozen
                feat = self.foundation_model(x[:, t])  # (B, feature_dim)
            temporal_features.append(feat)

        # Stack temporal features
        temporal_features = torch.stack(temporal_features, dim=1)  # (B, T, feature_dim)

        # Apply temporal fusion
        if self.temporal_fusion == 'attention':
            fused_features, _ = self.temporal_attention(
                temporal_features, temporal_features, temporal_features
            )
            # Use last timestep
            output_features = fused_features[:, -1]

        elif self.temporal_fusion == 'lstm':
            lstm_out, _ = self.temporal_lstm(temporal_features)
            output_features = lstm_out[:, -1]

        elif self.temporal_fusion == 'transformer':
            transformer_out = self.temporal_transformer(temporal_features)
            output_features = transformer_out.mean(dim=1)  # Global average pooling

        else:  # Simple averaging
            output_features = temporal_features.mean(dim=1)

        # Final prediction
        prediction = self.classifier(output_features)

        return {
            'prediction': prediction,
            'temporal_features': temporal_features,
            'fused_features': output_features
        }

# Mock foundation model for demonstration
class MockFoundationModel(nn.Module):
    def __init__(self):
        super().__init__()
        self.backbone = nn.Sequential(
            nn.Conv2d(3, 64, 7, stride=2, padding=3),
            nn.ReLU(),
            nn.AdaptiveAvgPool2d(1),
            nn.Flatten(),
            nn.Linear(64, 768)
        )

    def forward(self, x):
        return self.backbone(x)

# Create foundation model with temporal adaptation
foundation_base = MockFoundationModel()
temporal_foundation = FoundationModelTemporal(foundation_base, temporal_fusion='attention')

print(f"Temporal foundation model parameters: {sum(p.numel() for p in temporal_foundation.parameters()):,}")

# Test with temporal data
with torch.no_grad():
    foundation_output = temporal_foundation(sample_batch)
    print(f"Foundation model output shape: {foundation_output['prediction'].shape}")
    print(f"Temporal features shape: {foundation_output['temporal_features'].shape}")
Temporal foundation model parameters: 2,429,450
Foundation model output shape: torch.Size([8, 10])
Temporal features shape: torch.Size([8, 12, 768])

Project Implementation Framework

Project Structure Template

class ProjectFramework:
    """Framework for implementing independent projects"""

    def __init__(self, project_config):
        self.config = project_config
        self.model = None
        self.data_loader = None
        self.trainer = None

    def setup_data(self):
        """Setup project-specific data pipeline"""
        print(f"Setting up data for: {self.config['title']}")

        # This would be customized for each project
        if self.config['data_type'] == 'time_series':
            self.data_loader = self._setup_temporal_data()
        elif self.config['data_type'] == 'static':
            self.data_loader = self._setup_static_data()
        else:
            raise ValueError(f"Unknown data type: {self.config['data_type']}")

        return self.data_loader

    def _setup_temporal_data(self):
        """Setup temporal data pipeline"""
        # For demonstration, use our temporal dataset
        return DataLoader(temporal_dataset, batch_size=self.config['batch_size'], shuffle=True)

    def _setup_static_data(self):
        """Setup static data pipeline"""
        # Placeholder for static image data
        return None

    def setup_model(self):
        """Setup project-specific model"""
        print(f"Setting up model for: {self.config['model_type']}")

        if self.config['model_type'] == 'temporal_transformer':
            self.model = TemporalTransformer(**self.config['model_params'])
        elif self.config['model_type'] == 'temporal_lstm':
            self.model = TemporalLSTM(**self.config['model_params'])
        elif self.config['model_type'] == 'foundation_temporal':
            base_model = MockFoundationModel()
            self.model = FoundationModelTemporal(base_model, **self.config['model_params'])
        else:
            raise ValueError(f"Unknown model type: {self.config['model_type']}")

        return self.model

    def setup_training(self):
        """Setup training procedure"""
        if self.config['task_type'] == 'change_detection':
            # Wrap the base model in a ChangeDetector
            change_detection_model = ChangeDetector(self.model, num_classes=3)
            self.trainer = ChangeDetectionTrainer(change_detection_model)
        else:
            # Generic trainer (would be implemented)
            self.trainer = None

        return self.trainer

    def run_experiment(self):
        """Run the complete experiment"""
        print(f"\\nRunning experiment: {self.config['title']}")
        print("=" * 50)

        # Setup components
        data_loader = self.setup_data()
        model = self.setup_model()
        trainer = self.setup_training()

        # Run training if trainer available
        if trainer:
            history = trainer.fit(data_loader, epochs=self.config['epochs'])
            return history
        else:
            print("No trainer available - would implement project-specific training")
            return None

# Example project configurations
project_configs = {
    'crop_monitoring': {
        'title': 'Crop Growth Monitoring',
        'data_type': 'time_series',
        'model_type': 'temporal_transformer',
        'task_type': 'change_detection',
        'batch_size': 8,
        'epochs': 5,
        'model_params': {
            'input_dim': 256,
            'd_model': 256,
            'nhead': 8,
            'num_layers': 4
        }
    },
    'deforestation_detection': {
        'title': 'Deforestation Detection',
        'data_type': 'time_series',
        'model_type': 'foundation_temporal',
        'task_type': 'change_detection',
        'batch_size': 4,
        'epochs': 3,
        'model_params': {
            'temporal_fusion': 'attention'
        }
    }
}

# Demonstrate project framework
project = ProjectFramework(project_configs['crop_monitoring'])
history = project.run_experiment()

if history:
    print("\\nTraining completed successfully!")
    print(f"Final accuracy: {history['classification_acc'][-1]:.3f}")
\nRunning experiment: Crop Growth Monitoring
==================================================
Setting up data for: Crop Growth Monitoring
Setting up model for: temporal_transformer
Training change detection model...
Epoch  1/5 | Loss: 0.5918 | Acc: 0.960 | MAE: 0.4003
Epoch  2/5 | Loss: 0.0536 | Acc: 1.000 | MAE: 0.1634
Epoch  3/5 | Loss: 0.0059 | Acc: 1.000 | MAE: 0.0531
Epoch  4/5 | Loss: 0.0017 | Acc: 1.000 | MAE: 0.0278
Epoch  5/5 | Loss: 0.0009 | Acc: 1.000 | MAE: 0.0201
\nTraining completed successfully!
Final accuracy: 1.000

Evaluation Metrics for Spatiotemporal Models

Temporal-Aware Metrics

class SpatiotemporalMetrics:
    """Comprehensive metrics for spatiotemporal model evaluation"""

    @staticmethod
    def temporal_consistency(predictions, ground_truth):
        """Measure temporal consistency of predictions"""
        # predictions, ground_truth: (B, T, ...)

        # Calculate temporal gradients
        pred_gradients = torch.diff(predictions, dim=1)
        gt_gradients = torch.diff(ground_truth, dim=1)

        # Consistency score
        consistency = 1 - torch.mean(torch.abs(pred_gradients - gt_gradients))
        return consistency.item()

    @staticmethod
    def change_detection_metrics(pred_change_type, pred_change_mag,
                               true_change_type, true_change_mag):
        """Metrics specific to change detection"""
        # Classification metrics
        correct_classifications = (pred_change_type == true_change_type).float()
        classification_accuracy = correct_classifications.mean().item()

        # Regression metrics for magnitude
        mae = torch.mean(torch.abs(pred_change_mag - true_change_mag)).item()
        rmse = torch.sqrt(torch.mean((pred_change_mag - true_change_mag) ** 2)).item()

        return {
            'classification_accuracy': classification_accuracy,
            'magnitude_mae': mae,
            'magnitude_rmse': rmse
        }

    @staticmethod
    def spatial_autocorrelation(predictions, ground_truth):
        """Measure spatial autocorrelation preservation"""
        # Simplified version - would use proper spatial statistics in practice

        def moran_i_approx(data):
            """Approximate Moran's I calculation"""
            # This is a simplified version
            mean_val = torch.mean(data)
            numerator = torch.sum((data - mean_val) ** 2)
            return numerator / (data.numel() * torch.var(data))

        pred_moran = moran_i_approx(predictions)
        gt_moran = moran_i_approx(ground_truth)

        # How well do we preserve spatial structure?
        preservation = 1 - torch.abs(pred_moran - gt_moran)
        return preservation.item()

# Demonstrate evaluation metrics
with torch.no_grad():
    # Generate some test predictions
    test_batch = next(iter(temporal_loader))
    change_output = change_detector(test_batch)
    true_types, true_mags = create_change_labels(test_batch)

    pred_types = change_output['change_type'].argmax(dim=1)
    pred_mags = change_output['change_magnitude']

    # Calculate metrics
    metrics = SpatiotemporalMetrics()

    change_metrics = metrics.change_detection_metrics(
        pred_types, pred_mags, true_types, true_mags
    )

    print("\\n=== Spatiotemporal Evaluation Metrics ===")
    print(f"Classification Accuracy: {change_metrics['classification_accuracy']:.3f}")
    print(f"Magnitude MAE: {change_metrics['magnitude_mae']:.4f}")
    print(f"Magnitude RMSE: {change_metrics['magnitude_rmse']:.4f}")

    # Temporal consistency (using synthetic data)
    temp_consistency = metrics.temporal_consistency(test_batch[:, :-1], test_batch[:, 1:])
    print(f"Temporal Consistency: {temp_consistency:.3f}")
\n=== Spatiotemporal Evaluation Metrics ===
Classification Accuracy: 1.000
Magnitude MAE: 0.0087
Magnitude RMSE: 0.0089
Temporal Consistency: 0.909

Week 6 Project Workshop

Project Implementation Phase

This week marks the beginning of your independent project implementation. Use the frameworks and techniques demonstrated above to:

  1. Implement your data pipeline using the temporal processing techniques
  2. Adapt foundation models to your specific spatiotemporal task
  3. Design evaluation metrics appropriate for your problem
  4. Begin training and iteration on your project

Project Checklist

class ProjectChecklist:
    """Checklist for Week 6 project implementation"""

    def __init__(self):
        self.checklist = {
            'data_pipeline': [
                'Data access and loading implemented',
                'Temporal sequences properly formatted',
                'Data augmentation strategy defined',
                'Train/validation split established'
            ],
            'model_architecture': [
                'Base model architecture selected',
                'Temporal processing method chosen',
                'Model adaptations for project implemented',
                'Parameter count and computational requirements assessed'
            ],
            'training_setup': [
                'Loss functions appropriate for task defined',
                'Optimization strategy established',
                'Training loop implemented',
                'Checkpointing and model saving set up'
            ],
            'evaluation': [
                'Evaluation metrics selected and implemented',
                'Baseline comparisons planned',
                'Visualization strategy for results defined',
                'Success criteria clearly established'
            ]
        }

    def display_checklist(self):
        """Display the project checklist"""
        print("\\n=== Week 6 Project Implementation Checklist ===")
        for category, items in self.checklist.items():
            print(f"\\n{category.upper().replace('_', ' ')}:")
            for item in items:
                print(f"  □ {item}")

    def mark_completed(self, category, item_index):
        """Mark an item as completed"""
        if category in self.checklist:
            if 0 <= item_index < len(self.checklist[category]):
                item = self.checklist[category][item_index]
                self.checklist[category][item_index] = f"✓ {item[2:]}"

# Display project checklist
checklist = ProjectChecklist()
checklist.display_checklist()

print("\\n=== Implementation Tips ===")
tips = [
    "Start with simple temporal models before moving to complex architectures",
    "Use synthetic data to validate your pipeline before applying to real data",
    "Implement thorough logging and visualization for debugging",
    "Consider computational constraints when designing temporal sequences",
    "Plan for iterative development - start simple and add complexity gradually"
]

for i, tip in enumerate(tips, 1):
    print(f"{i}. {tip}")
\n=== Week 6 Project Implementation Checklist ===
\nDATA PIPELINE:
  □ Data access and loading implemented
  □ Temporal sequences properly formatted
  □ Data augmentation strategy defined
  □ Train/validation split established
\nMODEL ARCHITECTURE:
  □ Base model architecture selected
  □ Temporal processing method chosen
  □ Model adaptations for project implemented
  □ Parameter count and computational requirements assessed
\nTRAINING SETUP:
  □ Loss functions appropriate for task defined
  □ Optimization strategy established
  □ Training loop implemented
  □ Checkpointing and model saving set up
\nEVALUATION:
  □ Evaluation metrics selected and implemented
  □ Baseline comparisons planned
  □ Visualization strategy for results defined
  □ Success criteria clearly established
\n=== Implementation Tips ===
1. Start with simple temporal models before moving to complex architectures
2. Use synthetic data to validate your pipeline before applying to real data
3. Implement thorough logging and visualization for debugging
4. Consider computational constraints when designing temporal sequences
5. Plan for iterative development - start simple and add complexity gradually

Assignment: Project Implementation

Week 6 Deliverable

By the end of this week, have a working implementation of your project including:

  1. Data Pipeline: Complete data loading and preprocessing
  2. Model Implementation: Working model architecture for your task
  3. Training Loop: Basic training procedure with loss tracking
  4. Initial Results: Preliminary results and visualizations
  5. Next Steps Plan: Clear plan for Week 7 optimization and scaling

Document your progress and any challenges encountered.

Next Week Preview

  • Week 7: Scale up your analysis using cloud platforms and advanced optimization
  • Week 8: Build deployment pipelines and comprehensive evaluation
  • Week 9: Final analysis, model comparison, and presentation preparation
  • Week 10: Final project presentations

The spatiotemporal modeling techniques and project framework from this week provide the foundation for implementing sophisticated geospatial AI applications that can handle the temporal dynamics crucial for real-world environmental monitoring and analysis.
